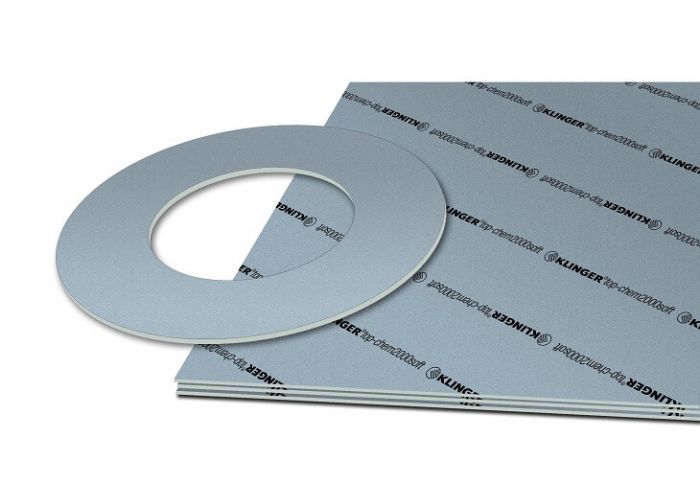

GASKET SHEET TOP CHEM 2000 SOFT
This unique-structure material combines the best load bearing capacity with excellent compressibility. It consists of a unique matrix which creates a universal heavy-duty gasket.
KLINGER® Top-Chem 2000 Soft features superior resistance to strong acids and alkalis, even at high temperatures and surface loads.
Areas of application:
In the first area, the gasket material is suitable for use provided that it has adequate chemical resistance to the medium.
In area two, the gasket material may prove applicable, but additional calculations are recommended.
In area three, additional calculations are required prior to installation of the gasket.
-
TYPICAL TECHNICAL DATA FOR THICKNESS 2.0 MM Compressibilty ASTM F 36 J % 15 Recovery ASTM F 36 J % 20 Stress relaxation DIN 52913 50 MPa, 16 godz./300°C Mpa 25 KLINGER cold/hot compression 50 Mpa
thickness decrease at 23°C % 17 thickness decrease at 260°C % 20 Tightness DIN 28090-2 mg/s x m 0,05 Specific leakrate λ VDI 2440 mbar x – l/s x m E-06 Density DIN 28090-2 g/cm³ –
-
Dimensions of the standard sheets
Sizes: 1500 x 1500 mm.
Thicknesses: 1,0 mm, 1,5 mm, 2,0 mm, 3,0 mm.
Tolerances: Thickness acc. to DIN 28091-1, Length ±50 mm, Width ±50 mm
