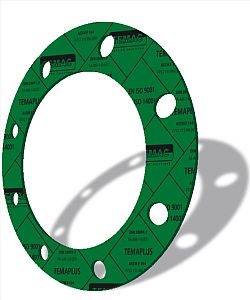

Gasket Sheet TEMAPLUS
High quality gasket sheet containing high resistant aramid fibres and heat resistant fillers, bonded with special NBR rubber. Gasket plate with excellent mechanical properties (high creep resistance at elevated temperature and pressure) suitable for sealing oils, fuels, lubricants, alcohols, gases, cooling liquids, hydrocarbons and most diluted acids and bases.
Certificates: DNV-GL, GOST
-
Max. peak temperature °C 450 Max constant temperature °C 250 (steam 200) Typical parameters of 2 mm thick samples Max. pressure bar 130 Density g/cm³ 1,9 Compressibility % 10 Flexible return % 50 Residual stress (16h/175°C) ≈ MPa 32 Specific amount of leakage λ2,0 ≈ mg/(m.s) 0,03 Liquid resistance – thickness increment Oil IRM 903 (5h/150°C) % 3 ASTM liquid B (5h/23°C) % 5
-
- Panel dimensions: 1.5 x 1.5 m / 1.5 x 1.0 m / 1.5 x 3.0 m
- Other dimensions are available on request.
- Dimension tolerance ± 2 %.
- Standard thicknesses:
- 0.4 – 6.4 mm
- with metal mesh reinforcement: 0.8 – 6.4 mm
- Thickness tolerance 0.4 – 0.8 ± 0.1 mm / 1.0 – 6.4 ± 10 %.
- Surface finish: All gasket sheets are manufactured with antistatic surface on one side
