GASKET SHEET C-4400
Universal high-pressure sealing material for a wide range of applications in the chemical industry, food industry and drinking water installations.
Basis: Aramid fibres, bonded with NBR. Resistant to oils, water, steam, gases, salt solutions, fuels, alcohols, moderate organic and inorganic acids, hydrocarbons, lubricants and refrigerants.
Complies with DIN-DVGW, WRC approval, recommended by BAM, HTB, KTW
-

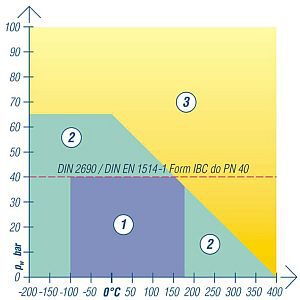

Temperature under continuous operation
Peak temperature Maximum pressure -100°C – 175°C -200°C – 300°C 6,5 MPa
-
Dimensions of standard sheets:
Sheet size (mm): 1000X1500, 2000X1500
Thickness (mm): 0,5 1,0 1,5 2,0 3,0
